Two Stage VSD Compressors

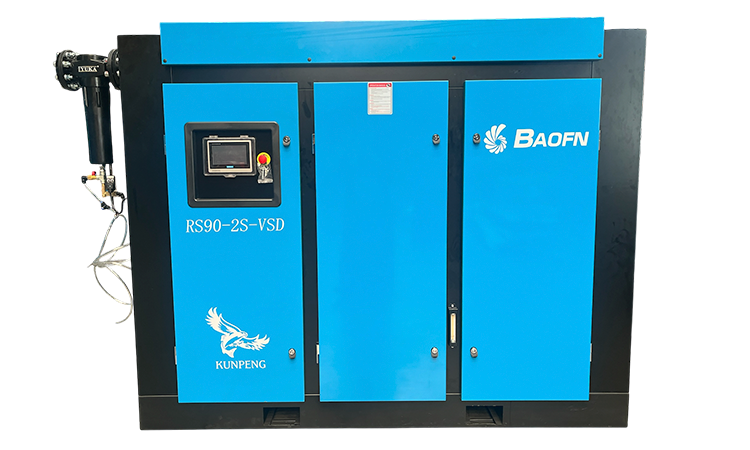

RS90-2S-VSD
Screw Compressors. Official BAOFN specifications, backed by the only OEM warranty on BAOFN units in South Africa.
Key specifications
- Motor
- 90 kW
- Outlet
- DN80
- Weight
- 2400 kg
- Dimensions
- 2380x1750x1900
Catalogue specifications
| Model | RS90-2S-VSD |
|---|---|
| Motor Power (kW) | 90 |
| Outlet Size | DN80 |
| Machine Weight (kg) | 2400 |
| Dimensions LxWxH (mm) | 2380x1750x1900 |
| Noise (dB) | 68 ±2 |
Operating options
| Pressure | Flow |
|---|---|
| 8 bar | 19.2 m3/min (678 CFM) |
| 10 bar | 16.9 m3/min (596.8 CFM) |
| 13 bar | 14.3 m3/min (505 CFM) |
Quote this model
Tell us the duty for this model and we will come back with a quote. Prefer the general form? Open contact.
Datasheet
Spec-sheet PDFs are not published on this site yet. Request the datasheet by email and we will send the official sheet for RS90-2S-VSD.
