Two Stage VSD Compressors

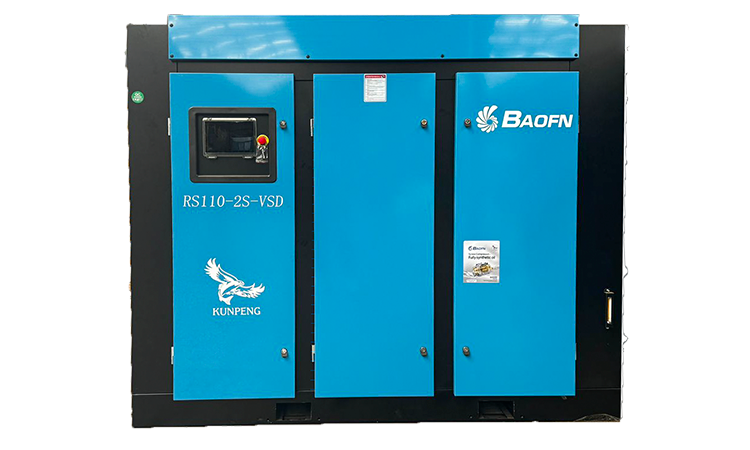

RS110-2S-VSD
Screw Compressors. Official BAOFN specifications, backed by the only OEM warranty on BAOFN units in South Africa.
Key specifications
- Motor
- 110 kW
- Outlet
- DN100
- Weight
- 3300 kg
- Dimensions
- 2400x1850x1970
Catalogue specifications
| Model | RS110-2S-VSD |
|---|---|
| Motor Power (kW) | 110 |
| Outlet Size | DN100 |
| Machine Weight (kg) | 3300 |
| Dimensions LxWxH (mm) | 2400x1850x1970 |
| Noise (dB) | 68 ±2 |
Operating options
| Pressure | Flow |
|---|---|
| 8 bar | 23.1 m3/min (815.8 CFM) |
| 10 bar | 19.7 m3/min (695.7 CFM) |
| 13 bar | 17.6 m3/min (621.5 CFM) |
