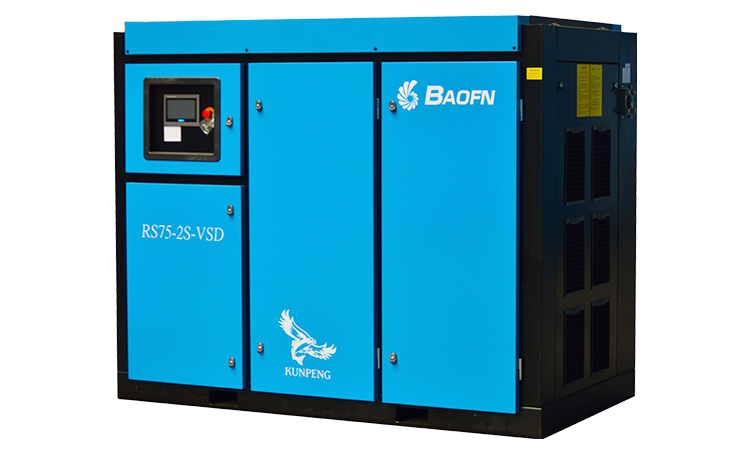

Two Stage VSD Compressors
RS75-2S-VSD
Screw Compressors. Official BAOFN specifications, backed by the only OEM warranty on BAOFN units in South Africa.
Key specifications
- Motor
- 75 kW
- Outlet
- DN65
- Weight
- 2000 kg
- Dimensions
- 1900x1550x1700
Catalogue specifications
| Model | RS75-2S-VSD |
|---|---|
| Motor Power (kW) | 75 |
| Outlet Size | DN65 |
| Machine Weight (kg) | 2000 |
| Dimensions LxWxH (mm) | 1900x1550x1700 |
| Noise (dB) | 68 ±2 |
Operating options
| Pressure | Flow |
|---|---|
| 8 bar | 15.5 m3/min (547.4 CFM) |
| 10 bar | 12.5 m3/min (441.4 CFM) |
| 13 bar | 11.2 m3/min (395.5 CFM) |
Quote this model
Tell us the duty for this model and we will come back with a quote. Prefer the general form? Open contact.
Datasheet
Spec-sheet PDFs are not published on this site yet. Request the datasheet by email and we will send the official sheet for RS75-2S-VSD.
