Two Stage VSD Compressors

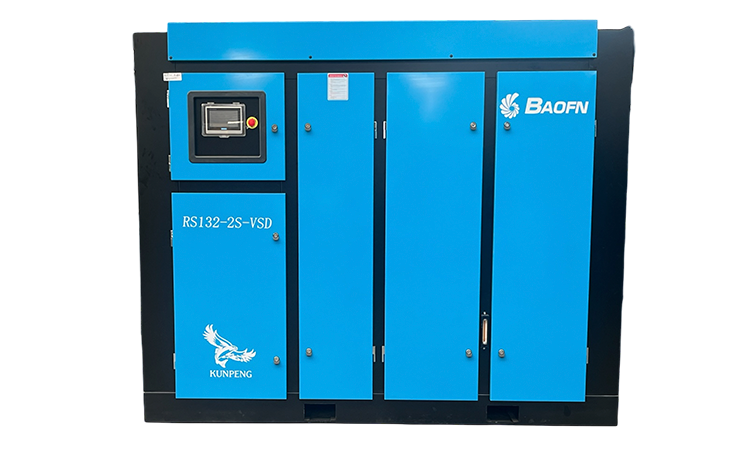

RS132-2S-VSD
Screw Compressors. Official BAOFN specifications, backed by the only OEM warranty on BAOFN units in South Africa.
Key specifications
- Motor
- 132 kW
- Outlet
- DN100
- Weight
- 4300 kg
- Dimensions
- 2700x1900x2200
Catalogue specifications
| Model | RS132-2S-VSD |
|---|---|
| Motor Power (kW) | 132 |
| Outlet Size | DN100 |
| Machine Weight (kg) | 4300 |
| Dimensions LxWxH (mm) | 2700x1900x2200 |
| Noise (dB) | 72 ±2 |
Operating options
| Pressure | Flow |
|---|---|
| 8 bar | 28 m3/min (988.8 CFM) |
| 10 bar | 23.5 m3/min (829.9 CFM) |
| 13 bar | 19.8 m3/min (699.2 CFM) |
Quote this model
Tell us the duty for this model and we will come back with a quote. Prefer the general form? Open contact.
Datasheet
Spec-sheet PDFs are not published on this site yet. Request the datasheet by email and we will send the official sheet for RS132-2S-VSD.
Other Two Stage VSD Compressors models
Need RS132-2S-VSD sized for the duty?
Tell us pressure, flow and hours. We will confirm the catalogue fit and come back within one working day.
