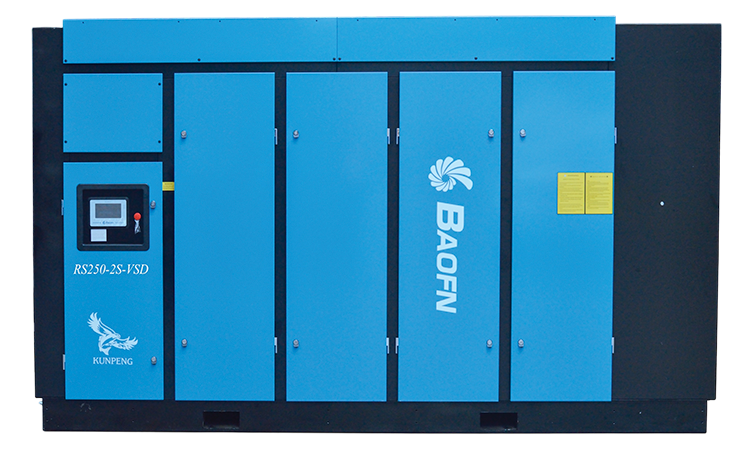

Two Stage VSD Compressors
RS250-2S-VSD
Screw Compressors. Official BAOFN specifications, backed by the only OEM warranty on BAOFN units in South Africa.
Key specifications
- Motor
- 250 kW
- Outlet
- DN125
- Weight
- 8000 kg
- Dimensions
- 4000x2200x2400
Catalogue specifications
| Model | RS250-2S-VSD |
|---|---|
| Motor Power (kW) | 250 |
| Outlet Size | DN125 |
| Machine Weight (kg) | 8000 |
| Dimensions LxWxH (mm) | 4000x2200x2400 |
| Noise (dB) | 80 ±2 |
Operating options
| Pressure | Flow |
|---|---|
| 8 bar | 56.7 m3/min (2002.3 CFM) |
| 10 bar | 47.8 m3/min (1688 CFM) |
| 13 bar | 41 m3/min (1447.9 CFM) |
Quote this model
Tell us the duty for this model and we will come back with a quote. Prefer the general form? Open contact.
Datasheet
Spec-sheet PDFs are not published on this site yet. Request the datasheet by email and we will send the official sheet for RS250-2S-VSD.
