Two Stage VSD Compressors

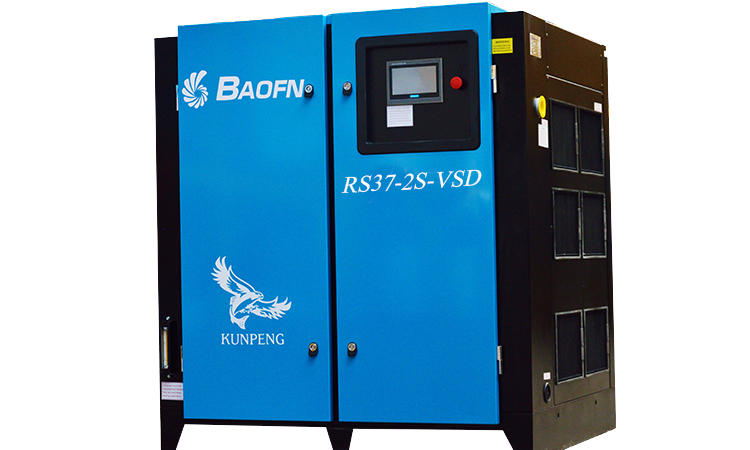

RS37-2S-VSD
Screw Compressors. Official BAOFN specifications, backed by the only OEM warranty on BAOFN units in South Africa.
Key specifications
- Motor
- 37 kW
- Outlet
- G1 1/2
- Weight
- 920 kg
- Dimensions
- 1560x970x1730
Catalogue specifications
| Model | RS37-2S-VSD |
|---|---|
| Motor Power (kW) | 37 |
| Outlet Size | G1 1/2 |
| Machine Weight (kg) | 920 |
| Dimensions LxWxH (mm) | 1560x970x1730 |
| Noise (dB) | 67 ±2 |
Operating options
| Pressure | Flow |
|---|---|
| 8 bar | 7.1 m3/min (250.7 CFM) |
| 10 bar | 6.7 m3/min (236.6 CFM) |
| 13 bar | 5.4 m3/min (190.7 CFM) |
Quote this model
Tell us the duty for this model and we will come back with a quote. Prefer the general form? Open contact.
Datasheet
Spec-sheet PDFs are not published on this site yet. Request the datasheet by email and we will send the official sheet for RS37-2S-VSD.
Other Two Stage VSD Compressors models
Need RS37-2S-VSD sized for the duty?
Tell us pressure, flow and hours. We will confirm the catalogue fit and come back within one working day.
