Two Stage Fixed Speed Compressors

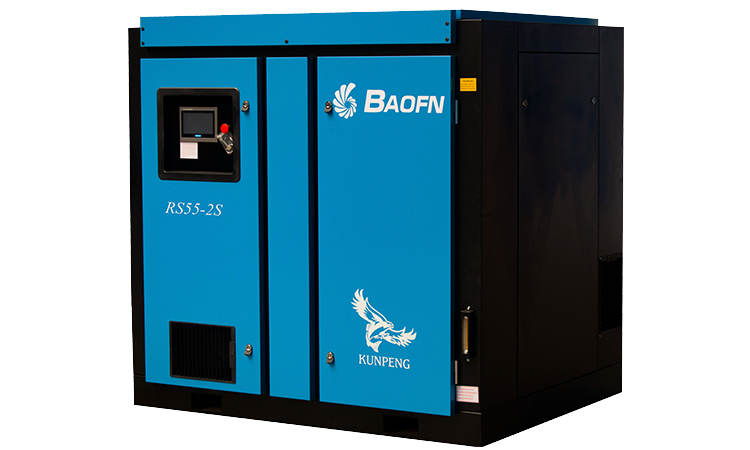

RS55-2S
Screw Compressors. Official BAOFN specifications, backed by the only OEM warranty on BAOFN units in South Africa.
Key specifications
- Motor
- 55 kW
- Outlet
- G2 1/2
- Weight
- 1950 kg
- Dimensions
- 2000x1360x1750
Catalogue specifications
| Model | RS55-2S |
|---|---|
| Motor Power (kW) | 55 |
| Outlet Size | G2 1/2 |
| Machine Weight (kg) | 1950 |
| Dimensions LxWxH (mm) | 2000x1360x1750 |
| Noise (dB) | 65 ±2 |
Operating options
| Pressure | Flow |
|---|---|
| 8 bar | 12 m3/min (423.8 CFM) |
| 10 bar | 9.6 m3/min (339 CFM) |
| 13 bar | 8.2 m3/min (289.6 CFM) |
Quote this model
Tell us the duty for this model and we will come back with a quote. Prefer the general form? Open contact.
Datasheet
Spec-sheet PDFs are not published on this site yet. Request the datasheet by email and we will send the official sheet for RS55-2S.
Need RS55-2S sized for the duty?
Tell us pressure, flow and hours. We will confirm the catalogue fit and come back within one working day.
