Two Stage Fixed Speed Compressors

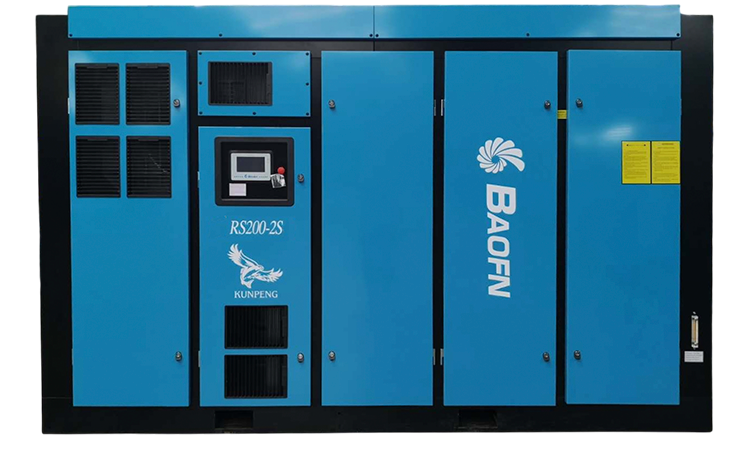

RS200-2S
Screw Compressors. Official BAOFN specifications, backed by the only OEM warranty on BAOFN units in South Africa.
Key specifications
- Motor
- 200 kW
- Outlet
- DN125
- Weight
- 6200 kg
- Dimensions
- 3200x1900x2450
Catalogue specifications
| Model | RS200-2S |
|---|---|
| Motor Power (kW) | 200 |
| Outlet Size | DN125 |
| Machine Weight (kg) | 6200 |
| Dimensions LxWxH (mm) | 3200x1900x2450 |
| Noise (dB) | 76 ±2 |
Operating options
| Pressure | Flow |
|---|---|
| 8 bar | 43 m3/min (1518.5 CFM) |
| 10 bar | 38.5 m3/min (1359.6 CFM) |
| 13 bar | 32.8 m3/min (1158.3 CFM) |
Quote this model
Tell us the duty for this model and we will come back with a quote. Prefer the general form? Open contact.
Datasheet
Spec-sheet PDFs are not published on this site yet. Request the datasheet by email and we will send the official sheet for RS200-2S.
Need RS200-2S sized for the duty?
Tell us pressure, flow and hours. We will confirm the catalogue fit and come back within one working day.
