Two Stage Fixed Speed Compressors

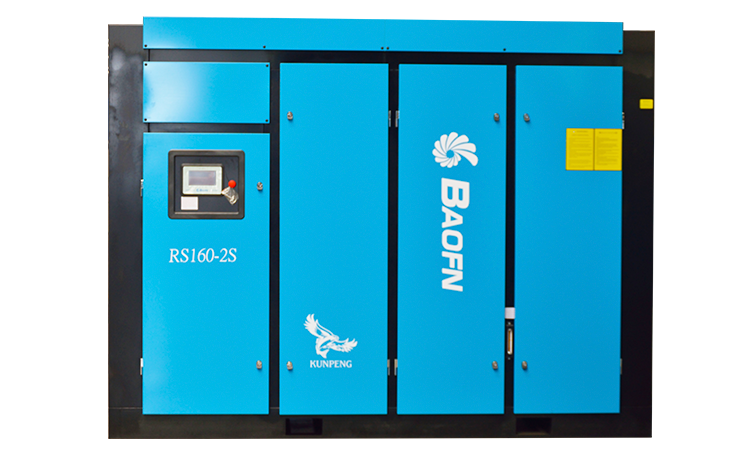

RS160-2S
Screw Compressors. Official BAOFN specifications, backed by the only OEM warranty on BAOFN units in South Africa.
Key specifications
- Motor
- 160 kW
- Outlet
- DN100
- Weight
- 4600 kg
- Dimensions
- 3050x1900x2430
Catalogue specifications
| Model | RS160-2S |
|---|---|
| Motor Power (kW) | 160 |
| Outlet Size | DN100 |
| Machine Weight (kg) | 4600 |
| Dimensions LxWxH (mm) | 3050x1900x2430 |
| Noise (dB) | 72 ±2 |
Operating options
| Pressure | Flow |
|---|---|
| 8 bar | 33.6 m3/min (1186.6 CFM) |
| 10 bar | 30 m3/min (1059.4 CFM) |
| 13 bar | 23.8 m3/min (840.5 CFM) |
Quote this model
Tell us the duty for this model and we will come back with a quote. Prefer the general form? Open contact.
Datasheet
Spec-sheet PDFs are not published on this site yet. Request the datasheet by email and we will send the official sheet for RS160-2S.
Need RS160-2S sized for the duty?
Tell us pressure, flow and hours. We will confirm the catalogue fit and come back within one working day.
