Two Stage Fixed Speed Compressors

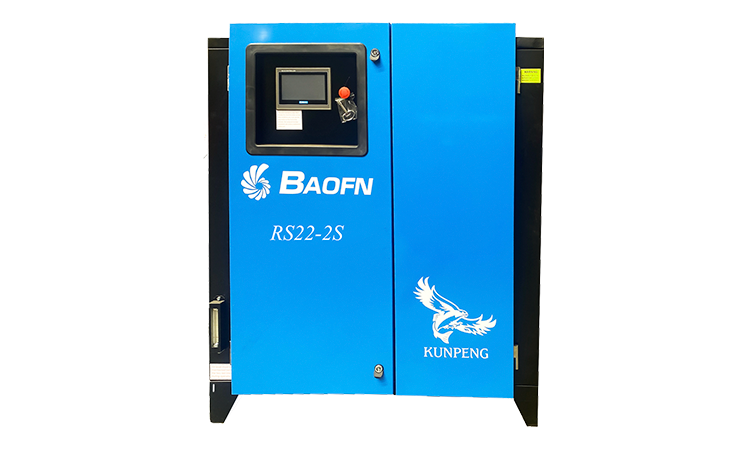

RS22-2S
Screw Compressors. Official BAOFN specifications, backed by the only OEM warranty on BAOFN units in South Africa.
Key specifications
- Motor
- 22 kW
- Outlet
- G1 1/2
- Weight
- 680 kg
- Dimensions
- 1450x970x1340
Catalogue specifications
| Model | RS22-2S |
|---|---|
| Motor Power (kW) | 22 |
| Outlet Size | G1 1/2 |
| Machine Weight (kg) | 680 |
| Dimensions LxWxH (mm) | 1450x970x1340 |
| Noise (dB) | 63 ±2 |
Operating options
| Pressure | Flow |
|---|---|
| 8 bar | 4.1 m3/min (144.8 CFM) |
| 10 bar | 3.5 m3/min (123.6 CFM) |
| 13 bar | 2.5 m3/min (88.3 CFM) |
Quote this model
Tell us the duty for this model and we will come back with a quote. Prefer the general form? Open contact.
Datasheet
Spec-sheet PDFs are not published on this site yet. Request the datasheet by email and we will send the official sheet for RS22-2S.
Need RS22-2S sized for the duty?
Tell us pressure, flow and hours. We will confirm the catalogue fit and come back within one working day.
