Single Stage VSD Compressors

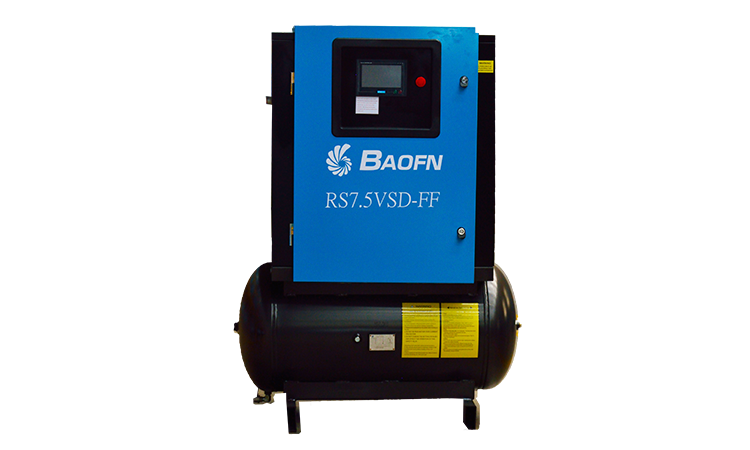

RS7.5VSD-FF
Screw Compressors. Official BAOFN specifications, backed by the only OEM warranty on BAOFN units in South Africa.
Key specifications
- Motor
- 7.5 kW
- Outlet
- G 3/4
- Weight
- 380 kg
- Dimensions
- 1270x750x1650
Catalogue specifications
| Model | RS7.5VSD-FF |
|---|---|
| Motor Power (kW) | 7.5 |
| Outlet Size | G 3/4 |
| Machine Weight (kg) | 380 |
| Dimensions LxWxH (mm) | 1270x750x1650 |
| Noise (dB) | 62 ±2 |
Operating options
| Pressure | Flow |
|---|---|
| 8 bar | 1.1 m3/min (38.8 CFM) |
| 10 bar | 0.9 m3/min (31.8 CFM) |
| 13 bar | 0.78 m3/min (27.5 CFM) |
Quote this model
Tell us the duty for this model and we will come back with a quote. Prefer the general form? Open contact.
Datasheet
Spec-sheet PDFs are not published on this site yet. Request the datasheet by email and we will send the official sheet for RS7.5VSD-FF.
Other Single Stage VSD Compressors models
Need RS7.5VSD-FF sized for the duty?
Tell us pressure, flow and hours. We will confirm the catalogue fit and come back within one working day.
