Single Stage VSD Compressors

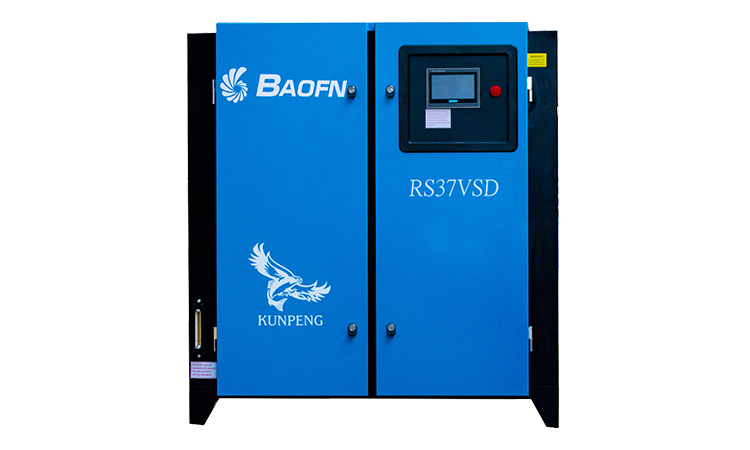

RS37VSD
Screw Compressors. Official BAOFN specifications, backed by the only OEM warranty on BAOFN units in South Africa.
Key specifications
- Motor
- 37 kW
- Outlet
- G1 1/2
- Weight
- 700 kg
- Dimensions
- 1350x1170x1480
Catalogue specifications
| Model | RS37VSD |
|---|---|
| Motor Power (kW) | 37 |
| Outlet Size | G1 1/2 |
| Machine Weight (kg) | 700 |
| Dimensions LxWxH (mm) | 1350x1170x1480 |
| Noise (dB) | 65 ±2 |
Operating options
| Pressure | Flow |
|---|---|
| 8 bar | 6.82 m3/min (240.8 CFM) |
| 10 bar | 5.75 m3/min (203.1 CFM) |
| 13 bar | 4.9 m3/min (173 CFM) |
Quote this model
Tell us the duty for this model and we will come back with a quote. Prefer the general form? Open contact.
Datasheet
Spec-sheet PDFs are not published on this site yet. Request the datasheet by email and we will send the official sheet for RS37VSD.
Other Single Stage VSD Compressors models
Need RS37VSD sized for the duty?
Tell us pressure, flow and hours. We will confirm the catalogue fit and come back within one working day.
