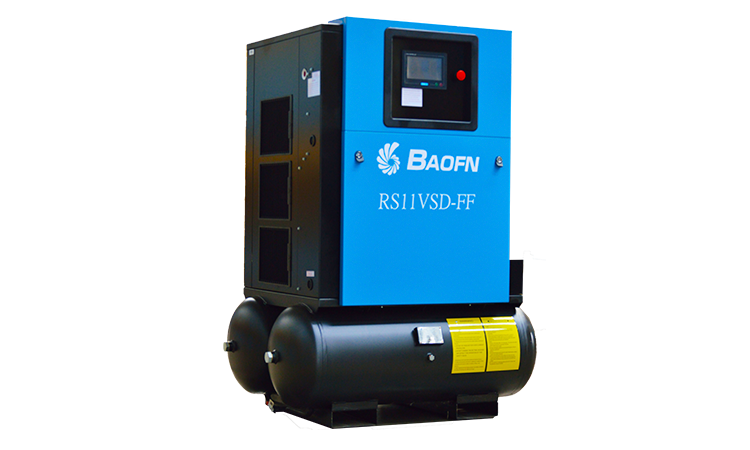

Single Stage VSD Compressors
RS11VSD-FF
Screw Compressors. Official BAOFN specifications, backed by the only OEM warranty on BAOFN units in South Africa.
Key specifications
- Motor
- 11 kW
- Outlet
- G 3/4
- Weight
- 480 kg
- Dimensions
- 1230x860x1600
Catalogue specifications
| Model | RS11VSD-FF |
|---|---|
| Motor Power (kW) | 11 |
| Outlet Size | G 3/4 |
| Machine Weight (kg) | 480 |
| Dimensions LxWxH (mm) | 1230x860x1600 |
| Noise (dB) | 62 ±2 |
Operating options
| Pressure | Flow |
|---|---|
| 8 bar | 1.7 m3/min (60 CFM) |
| 10 bar | 1.45 m3/min (51.2 CFM) |
| 13 bar | 1.25 m3/min (44.1 CFM) |
Quote this model
Tell us the duty for this model and we will come back with a quote. Prefer the general form? Open contact.
Datasheet
Spec-sheet PDFs are not published on this site yet. Request the datasheet by email and we will send the official sheet for RS11VSD-FF.
