Single Stage VSD Compressors

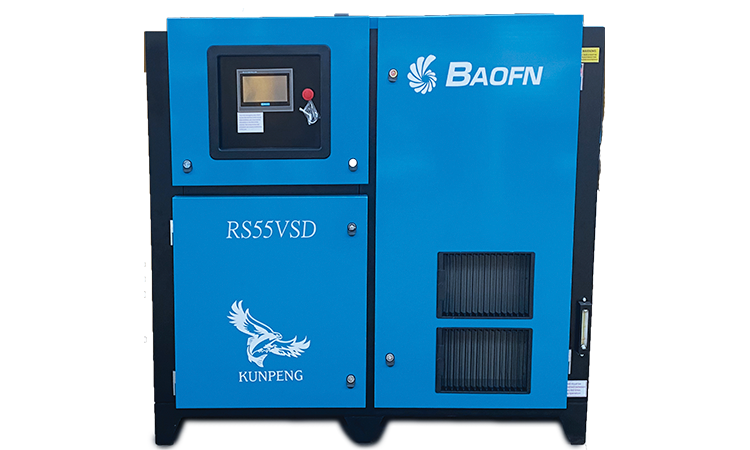

RS55VSD
Screw Compressors. Official BAOFN specifications, backed by the only OEM warranty on BAOFN units in South Africa.
Key specifications
- Motor
- 55 kW
- Outlet
- G2
- Weight
- 950 kg
- Dimensions
- 1600x1150x1530
Catalogue specifications
| Model | RS55VSD |
|---|---|
| Motor Power (kW) | 55 |
| Outlet Size | G2 |
| Machine Weight (kg) | 950 |
| Dimensions LxWxH (mm) | 1600x1150x1530 |
| Noise (dB) | 68 ±2 |
Operating options
| Pressure | Flow |
|---|---|
| 8 bar | 10.13 m3/min (357.7 CFM) |
| 10 bar | 8.3 m3/min (293.1 CFM) |
| 13 bar | 7.42 m3/min (262 CFM) |
Quote this model
Tell us the duty for this model and we will come back with a quote. Prefer the general form? Open contact.
Datasheet
Spec-sheet PDFs are not published on this site yet. Request the datasheet by email and we will send the official sheet for RS55VSD.
