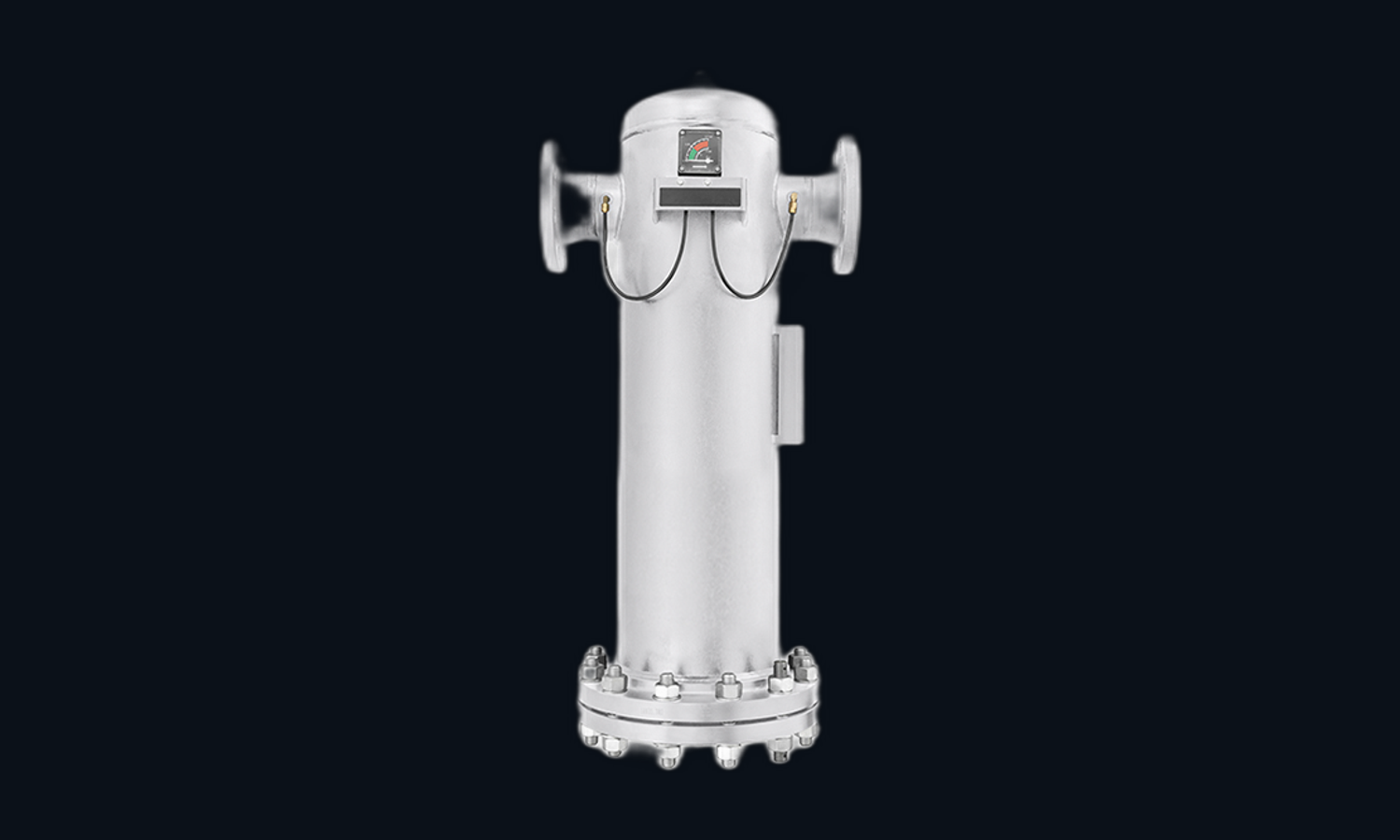

Inline Filters
PF 2F
Inline Filters. Official BAOFN specifications, backed by the only OEM warranty on BAOFN units in South Africa.
Key specifications
- Type
- Flange Filter
- FAD
- 51 m3/min
- Connection
- 4"
- Pressure Drop
- 85-140 mbar
Catalogue specifications
| Type | Flange Filter |
|---|---|
| Model | PF 2F |
| FAD | 51 m3/min |
| Connection / Flange | 4" |
| Initial Pressure Drop | 85-140 mbar |
| Dimensions A x B x C (mm) | 510x1360x230 |
| Weight (kg) | 141 |
| Filter elements | 3 |
| Element grades | P, S, D, G, C, V |
| Working pressure | 1-16 bar |
Quote this model
Tell us the duty for this model and we will come back with a quote. Prefer the general form? Open contact.
Datasheet
Spec-sheet PDFs are not published on this site yet. Request the datasheet by email and we will send the official sheet for PF 2F.
Need PF 2F sized for the duty?
Tell us pressure, flow and hours. We will confirm the catalogue fit and come back within one working day.
